Wide Temp Battery Cell & Custom Pack
Reliable power solutions for extreme environments from -40°C to +85°C
What is a Wide Temperature Lithium Battery?
A wide temp lithium battery is designed to work reliably in extreme temperatures, from -40°C to 85°C. Unlike standard cells, wide temp cells maintain stable capacity in the cold and resist aging in heat, ensuring consistent performance in harsh environments.
Our wide temp lithium cells are ideal for automotive electronics, security systems, outdoor equipment, military and defense application, etc. Delivering safe and reliable power where conventional cells often fail.
UltraXel Wide Temp Battery Cell
• Operating Temp.: -40℃~+85℃
• Key Feature: Low-temperature performance
• Typical Capacity(0.2C): 2900mAh
• Max charge/discharge: 1.4A / 10A
• Operating Temp.: -40℃~+85℃
• Key Feature: Compact long-life LFP platform
• Typical Capacity(0.2C): 500mAh
• Max charge/discharge: 0.48A/2.40A
• Operating Temp.: -40℃~+85℃
• Key Feature: Compact high-capacity design
• Typical Capacity(0.2C): 750mAh
• Max charge/discharge: 0.7A / 3.5A
• Operating Temp.: -40℃~+85℃
• Key Feature: High-temperature standby reliability
• Typical Capacity(0.2C): 2000mAh
• Max charge/discharge: 1.95A / 10A
• Operating Temp.: -40℃~+85℃
• Key Feature: 1500+ cycle life / safer LFP chemistry
• Typical Capacity(0.2C): 1600mAh
• Max charge/discharge: 1.6A / 7.5A
• Operating Temp.: -40℃~+85℃
• Key Feature: Long runtime / high capacity
• Typical Capacity(0.2C): 3200mAh
• Max charge/discharge: 3.2A / 10A
• Operating Temp.: -40℃~+85℃
• Key Feature: 30A High-rate Discharge Cell
• Typical Capacity(0.2C): 3000mAh
• Max charge/discharge: 3A / 30A
UltraXel wide temp battery Advantages
Wide Temperature Performance
Operates safely and reliably in environments ranging from -40°C to +85°C.
Ultra-High Drain
Single cells support continuous discharge at 30A.
Long Cycle Life
Maintains 500 cycles at 60°C high-temperature conditions.
Low-temperature Operating
Supports 0.1C charging and 1.0C discharging for 100 cycles at -20°C without lithium plating.
Excellent Safety and Reliability
Complies with certifications including CB, UL, CCC, BSMI, BIS, and UN.
Extended Calendar Life
Remains safe and reliable with a calendar life of over five years.
Wide-Temperature Li-ion Battery Applications
UltraXel provides wide-temperature lithium-ion cells and custom battery packs for extreme environments, operating reliably from -40°C to +85°C.
Applications of UltraXel Li-ion Cells
- Automotive Electronics
- Security & Surveillance
- Outdoor Equipment
- Military
- IoT / Industrial IoT
- Power Tools
- Light Transportation
- Smart Agriculture
- BBU & Backup Power
- AGV / AMR Mobile Robots
Wide-Temperature Li-ion Battery Applications
UltraXel offers wide-temperature lithium-ion battery solutions engineered for automotive electronics, industrial handheld devices, medical equipment, smart logistics, defense systems, and outdoor instrumentation. Our batteries deliver stable power from -40°C to +85°C, ensuring reliability and safety in even the most demanding environments.
UltraXel’s wide-temperature Li-ion battery solutions for automotive electronics including T-Box power supplies, E-call battery systems, and automotive smart gateway power supply. Designed for extreme heat and cold with high reliability.
As a global battery cell supplier UltraXel offers reliable lithium battery solutions for security cameras, smart doorbells, and IoT-powered surveillance systems with wide-temperature performance from -40°C to +85°C.
UltraXel offers wide-temperature lithium battery solutions for medical devices, including cold chain data loggers, door locks, and portable healthcare systems. UltraXel batteries offer long standby time, fast discharge capability, and wide temperature adaptability, ensuring reliable power for portable defibrillators in critical emergencies.
UltraXel is a leading industrial-grade battery manufacturer offering wide-temperature lithium battery solutions for handheld tools. Custom backup power for rugged and critical environments.
UltraXel’s wide temperature lithium battery solutions for outdoor instruments including total stations, weather sensors, and environmental monitors. High reliability in -40°C to +85°C conditions.
UltraXel provides wide-temperature lithium battery solutions for mineral exploration tools, downhole logging systems, and seismic sensors. High energy density, fast charging, and proven reliability under extreme conditions.
UltraXel’s military lithium battery solutions designed for extreme conditions, with high reliability, up to 10C discharge, and wide temperature performance from -40°C to +85°C.
UltraXel offers wide-temperature lithium battery solutions for smart logistics, including cold chain door locks, reefer container control, and IoT tracking devices. Certified, high-reliability performance for -40°C to +85°C.
UltraXel provides wide-temperature, high-rate discharge lithium battery solutions for cordless power tools. Retains 100% capacity at 15A, with over 500 cycles. Ideal for industrial and outdoor use.
Wide Temp Li-ion Batteries Types
Our wide temp lithium-ion batteries are designed to perform reliably in extreme temperatures, ensuring stable capacity and long cycle life across harsh environments. This category includes multiple chemistries tailored for different applications.

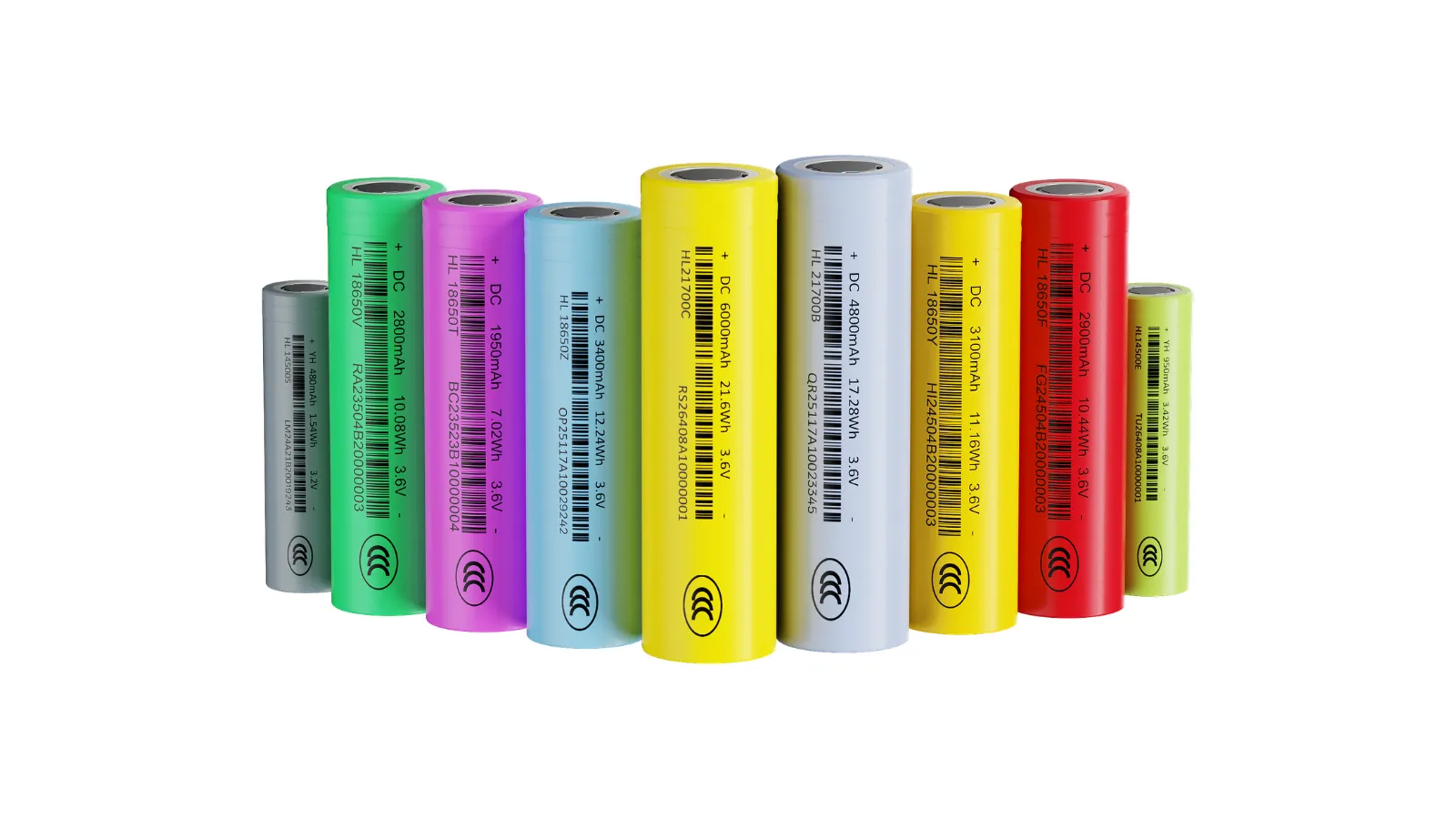

Wide Temp NCM Batteries
- Operating Range: -40°C to 85°C
- Features: High energy density，long cycle life, fast charge/discharge, and reliable performance across -40°C to 85°C
- Applications: Automotive electronics, security & surveillance, outdoor & military, cold chain logistics, industrial & field devices, power tools, oil & gas, medical devices & IoT trackers

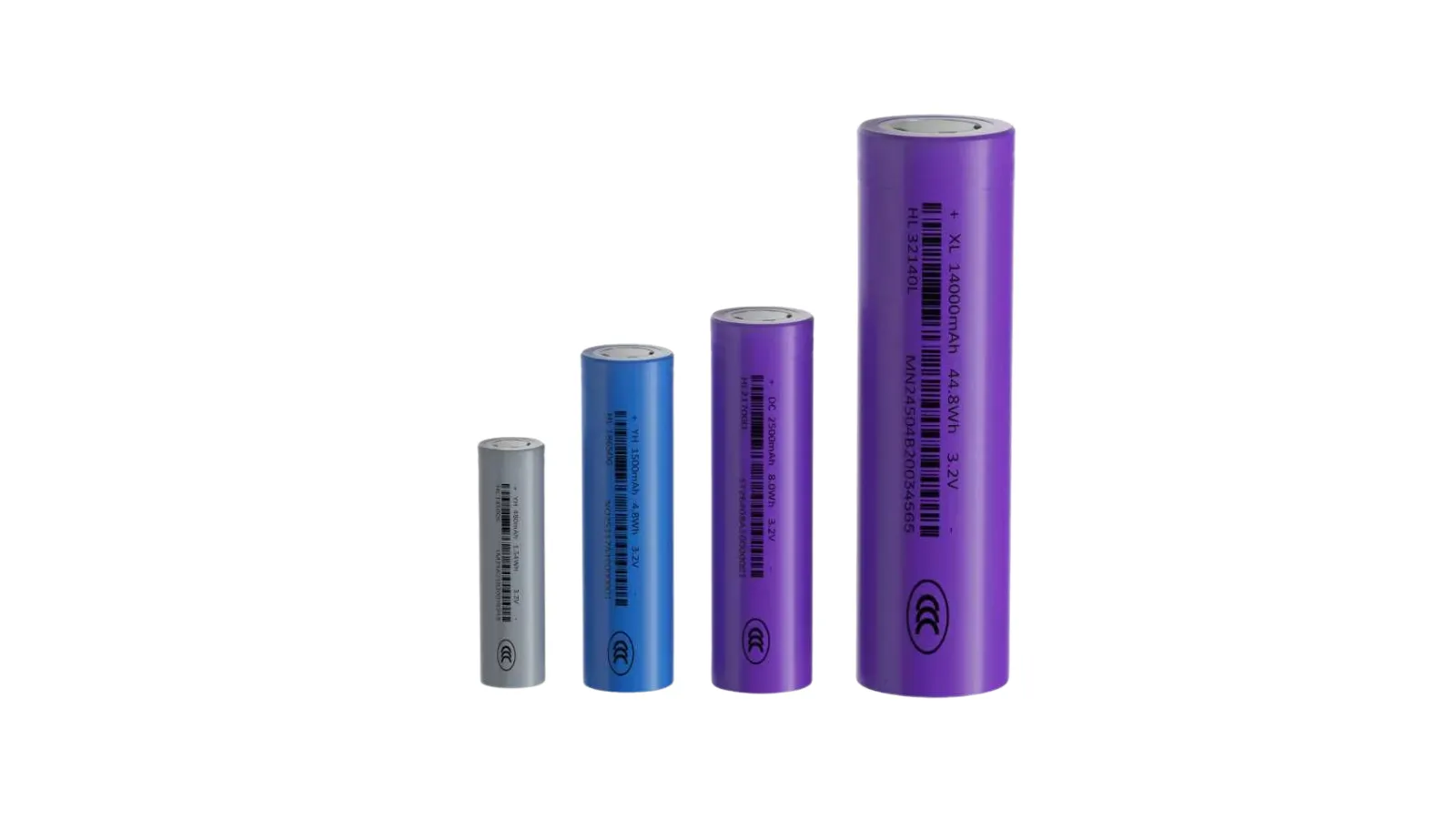

Wide Temp LiFePO4 Batteries

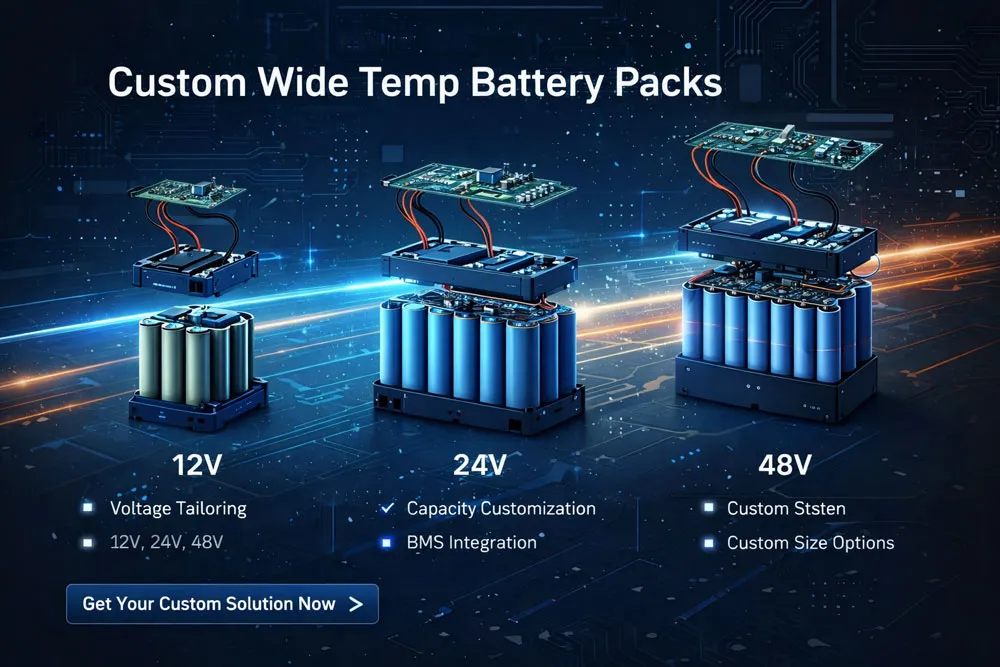

Custom Wide Temp Battery Packs
Fully Customizable – designed to fit your exact requirements:
- Voltage Configuration Tailor voltage through series connections (12V / 24V / 48V, etc.).
- Capacity & Dimensions Adjust capacity via parallel connections and customize dimensions.
- BMS / PCM Integration Select BMS/PCM solutions to meet your specific application needs.
Technical Specifications of Wide Temp Batteries
High-temperature batteries come in several types, each designed for reliable operation in extreme environments. Common high-temperature battery types include:
| Specifications / Model | Typical Capacity | Operating Voltage | Nominal Voltage | Charging Temperature | Discharging Temperature | Capacity Retention at -40°C | Max Continuous Charging Current | Max Continuous Discharging Current | Cycle Life | Initial Internal Resistance | Weight | Diameter | Length | DETAIL & DATASHEET |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HL18650T | 2000 mAh | 2.75 V – 4.20 V | 3.6V | -20~+60℃ | -40~+85℃ | ≈ 60% | 1C | 10A | 500 cycles (0.5C/0.2C) | ≤40mΩ | ≈ 42g | 18.3±0.2 mm | 64.9±0.3 mm |  READ MORE |
| HL18650V | 2900 mAh | 2.75 V – 4.20V | 3.6V | -20~+60℃ | -40~+85℃ | ≈ 70% | 0.5C | 10A | 500 cycles (0.3C/0.3C) | ≤18mΩ | ≈ 46.0g | 18.3±0.2 mm | 64.95±0.2 mm | READ MORE |
| HL18650F | 3000 mAh | 2.5 V – 4.20V | 3.6V | -20~+60℃ | -40~+85℃ | ≈ 70% | 1C | 30A | 500 cycles (0.5C/1C) | ≤18mΩ | ≈ 46.5g | 18.25±0.2 mm | 64.95±0.2 mm | READ MORE |
| HL18650Y | 3200 mAh | 2.5 V – 4.20V | 3.6V | -20~+60℃ | -40~+85℃ | ≈ 70% | 1C | 10A | 500 cycles (0.5C/1C) | ≤18mΩ | ≈ 47g | 18.25±0.2 mm | 64.95±0.2 mm | READ MORE |
| HL18650G | 1600 mAh | 2 V – 3.65V | 3.2V | -20~+60℃ | -40~+85℃ | ≈ 60% | 1C | 7.75A | 1000 cycles (1C/1C) | ≤30mΩ | ≈ 39g | 18.3±0.2 mm | 65±0.3 mm | READ MORE |
| HL14500R | 750 mAh | 2.75 V – 4.20V | 3.6V | -20~+60℃ | -40~+85℃ | ≈ 60% | 1C | 3.5A | 500 cycles (1C/1C) | ≤30mΩ | ≈ 19.5g | 14.2±0.2 mm | 48.9±0.3 mm | READ MORE |
| HL14500S | 500 mAh | 2 V – 3.65V | 3.2V | -20~+60℃ | -40~+85℃ | ≈ 60% | 1C | 2.4A | 1000 cycles (1C/1C) | ≤30mΩ | ≈ 17.8g | 14.2±0.2 mm | 48.9±0.3 mm | READ MORE |
| HL32140L | 15000 mAh | 2 V – 3.65V | 3.2V | -20~+60℃ | -40~+80℃ | ≈ 60% | 2C | 3C | 2000 cycles (0.5C/1C) | ≤3mΩ | ≈ 310g | 140±0.3 mm | 33.2±0.2 mm | READ MORE |

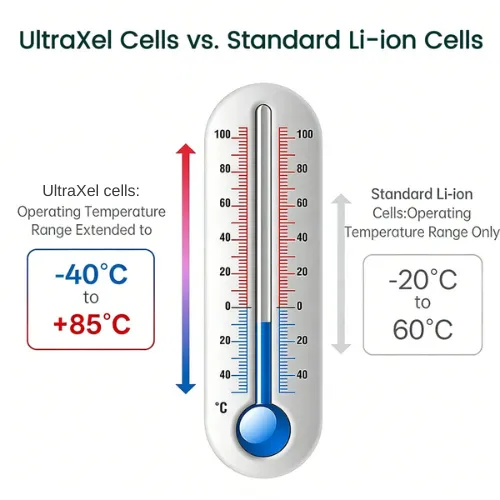

UltraXel Wide Temp Cell vs Standard Li-ion Cell
| Comparison Dimension | UltraXel Wide Temp Battery | Standard Lithium Battery | Advantage |
| Operating Temperature Range | Charging: -30°C to 60°C Discharging: -50°C to 85°C | Charging: 0°C to 45°C Discharging: -20°C to 60°C | Stable operation in extreme cold and high heat, ideal for harsh environments. |
| High-Temperature Float Charge | Can safely float charge at 60°C | Typically unstable under high temp float charge | Reliable in hot environments without performance loss. |
| High-Temperature Storage | Maintains >90% capacity after long-term storage at 85°C | Capacity drops significantly under high temp storage | Long-term storage reliability in extreme heat. |
| Low-Temperature Discharge | Delivers 80% of room-temp efficiency at -40°C | Performance drops below -10°C | Reliable low-temp operation for cold climates. |
| Low-Temperature Charging | Supports 0.2C charging at -30°C (patented lithium plating prevention) | Usually cannot charge below 0°C | Safe and efficient cold charging. |
| Fast Discharge Capability | Supports up to 30A | Typically <10A | Meets high power demands for industrial and automotive devices. |
| Cycle Life | Low temp (-10°C): up to 500 cycles Room temp (25°C): up to 2000+cycles | Typically <500 cycles | Longer lifespan under extreme conditions, reducing replacement frequency. |
| Internal Resistance | <30mΩ, low increasing in high.low temp. | Higher,dramatically increase at high/low temp. | More stable and efficient operation for high-load usage. |
| Self-Discharge | <3% per year at room temp | >10% per year | Maintains charge longer, ideal for backup and intermittent use. |
| Application Scenarios | Automotive electronics, IoT devices, outdoor equipment, industrial & military | Limited to normal temp devices | Broader application range, suitable for demanding environments. |
Why Choose UltraXel?
5-Year Wide-Temperature Stability
Reliable operation from -40°C to +85°C，supporting float charging and long-term standby.
100% Industrial & Automotive-Grade Reliability
ISO & IATF16949 certified, decades of R&D expertise, validated under extreme conditions, zero safety incidents, proven in overseas automotive applications.
Custom Battery Solutions
14500 / 18650 / 21700 / 32140 cells/packs, LFP & NCM, tailored to power and form factor needs.
28+ Years of Advanced Technology
Cutting-edge materials, design, and production optimized for extreme environments and real-world applications.
Contact Us Now
UltraXel provides wide-temperature lithium-ion cells and custom battery packs for extreme environments, operating reliably from -40°C to +85°C.
From Arctic cold to desert heat, we deliver custom batteries tailored to your capacity, voltage, and operating needs.
Wide-Temperature Battery FAQ
What is a wide-temperature battery?
A wide-temperature battery is a lithium-ion or lithium-metal battery designed to operate reliably across extreme temperatures, typically from -40°C to +85°C, ensuring stable performance in harsh environments.
Why do I need a wide-temp range battery?
Wide-temp range batteries are essential for applications exposed to extreme heat or cold, such as automotive electronics, outdoor instrumentation, industrial devices, defense systems, and electric vehicles.
Can I get custom wide-temp batteries?
Yes, ultraXel not only provides battery cell but also offers OEM/ODM wide-temp battery solutions, allowing customization of capacity, voltage, and form factor to meet your unique application requirements.
What industries use wide-temperature lithium batteries?
Industries include:
- Automotive & EV batteries for extreme climates
- Industrial handheld devices
- Medical equipment
- Smart logistics and IoT devices
- Defense and outdoor instrumentation
How do wide-temperature lithium batteries differ from standard lithium-ion batteries?
Wide-temperature batteries use specially formulated electrolytes for a wide temperature range and advanced cell design, allowing them to operate at lower and higher temperatures than standard lithium-ion batteries.
What are wide-temperature electrolytes?
Wide-temperature electrolytes are chemical formulations in lithium-ion batteries that maintain ionic conductivity in extreme cold and prevent degradation at high temperatures, ensuring reliable charging and discharging.
Are there wide-temperature rechargeable batteries?
Yes, wide-temperature range rechargeable batteries are available in both lithium-ion and lithium-metal chemistries, suitable for repeated cycling in harsh conditions.
Can I use wide-temp batteries in electric vehicles?
Wide-temperature lithium-ion cells and custom battery packs are ideal for electric vehicles, powering critical components such as T-Box (vehicle telematics), in-car audio systems, smart cabins, and dash cams. They ensure reliable performance across extreme temperatures—from Arctic cold to desert heat—while supporting stable operation, safety, and long lifespan.
Where can I source wide-temperature batteries?
UltraXel offers wide-temperature lithium-ion cells and custom battery packs, backed by 28 years of battery manufacturing experience and multiple patented technologies. We provide both standard cells and fully customized solutions for specialized applications, serving as a trusted supplier and OEM/ODM partner for demanding environments.
What is the market trend for wide-temperature lithium batteries?
The wide-temperature lithium battery market is growing rapidly due to rising demand in EVs, defense, industrial automation, and outdoor electronics, with innovations in wide-range temperature lithium-metal batteries and li-ion battery electrolytes designed for wide temperature ranges.
