HL14500R High Temperature IoT Battery - Long-lasting Power Solution for Harsh Environments
Crafted for Endurance in the Toughest Situations
HL14500R is engineered for unmatched reliability in the harshest conditions. Delivering exceptional performance, durability, and stability, it thrives where others fail, ensuring your success in extreme environments.
Extreme Temperature Range
Operates from -40°C to 85°C with stable output, perfect for harsh environments.

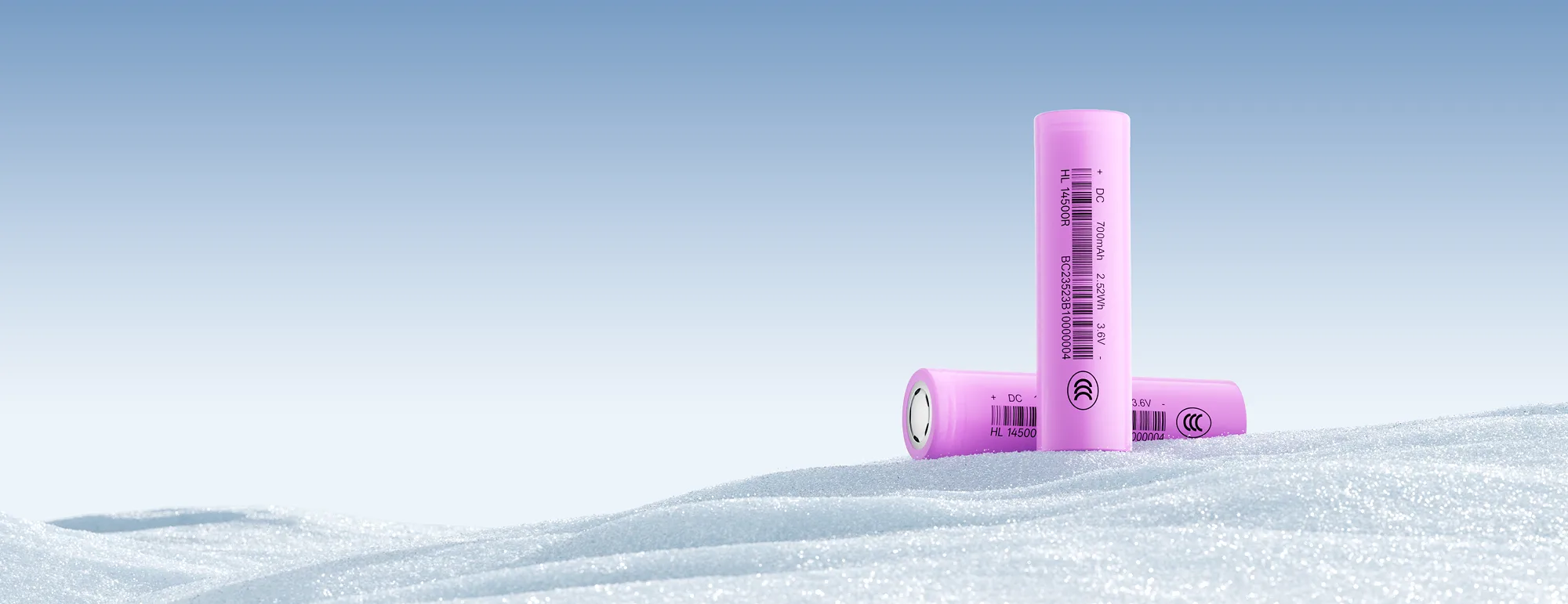

Low-Temperature Performance
Delivers 3.9V/6W at -20°C, even after high-temperature storage.

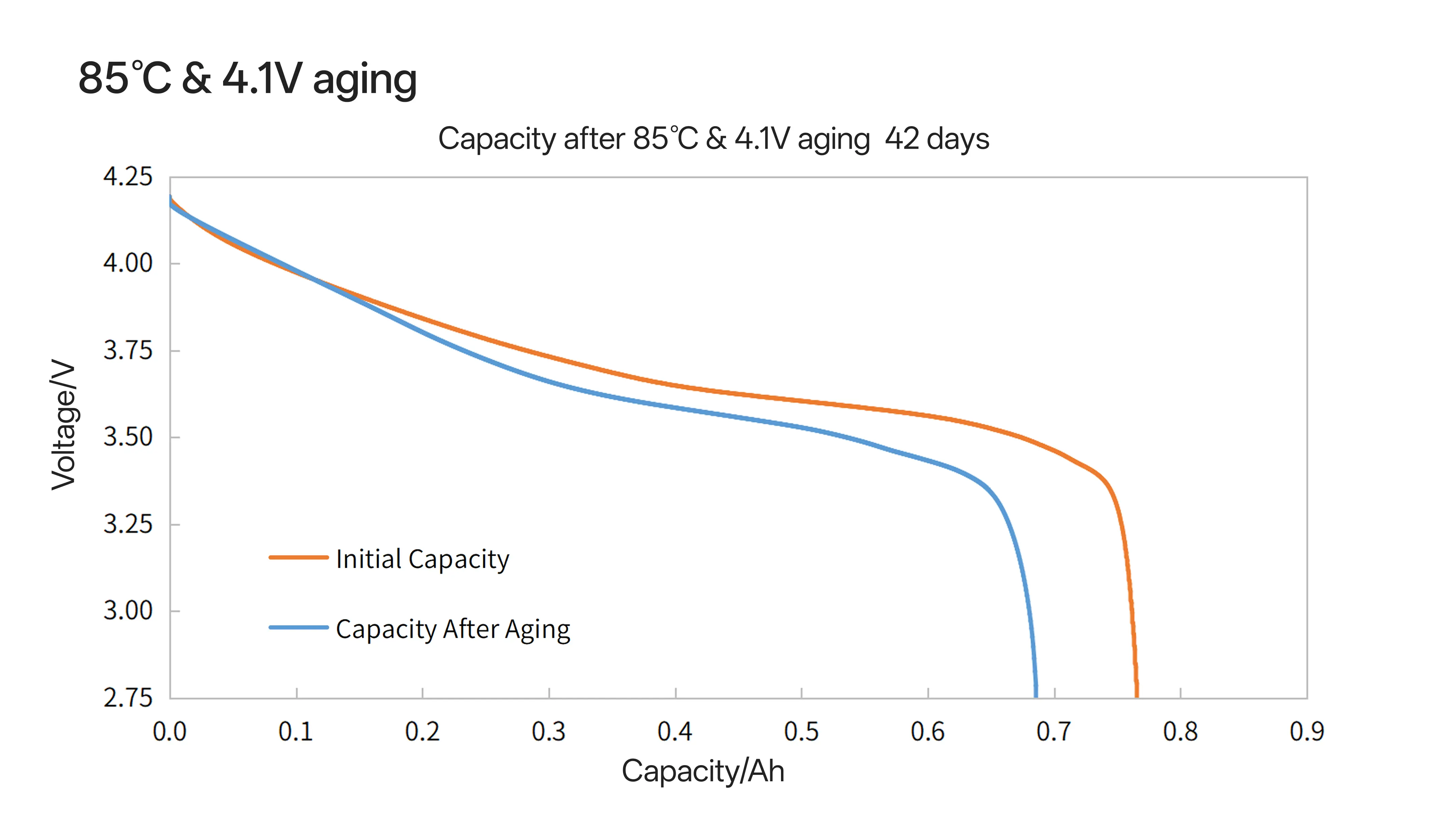

High-Temperature Stability
Retains over 90% capacity and 3.80V OCV after 48 days at 80°C for reliable performance.

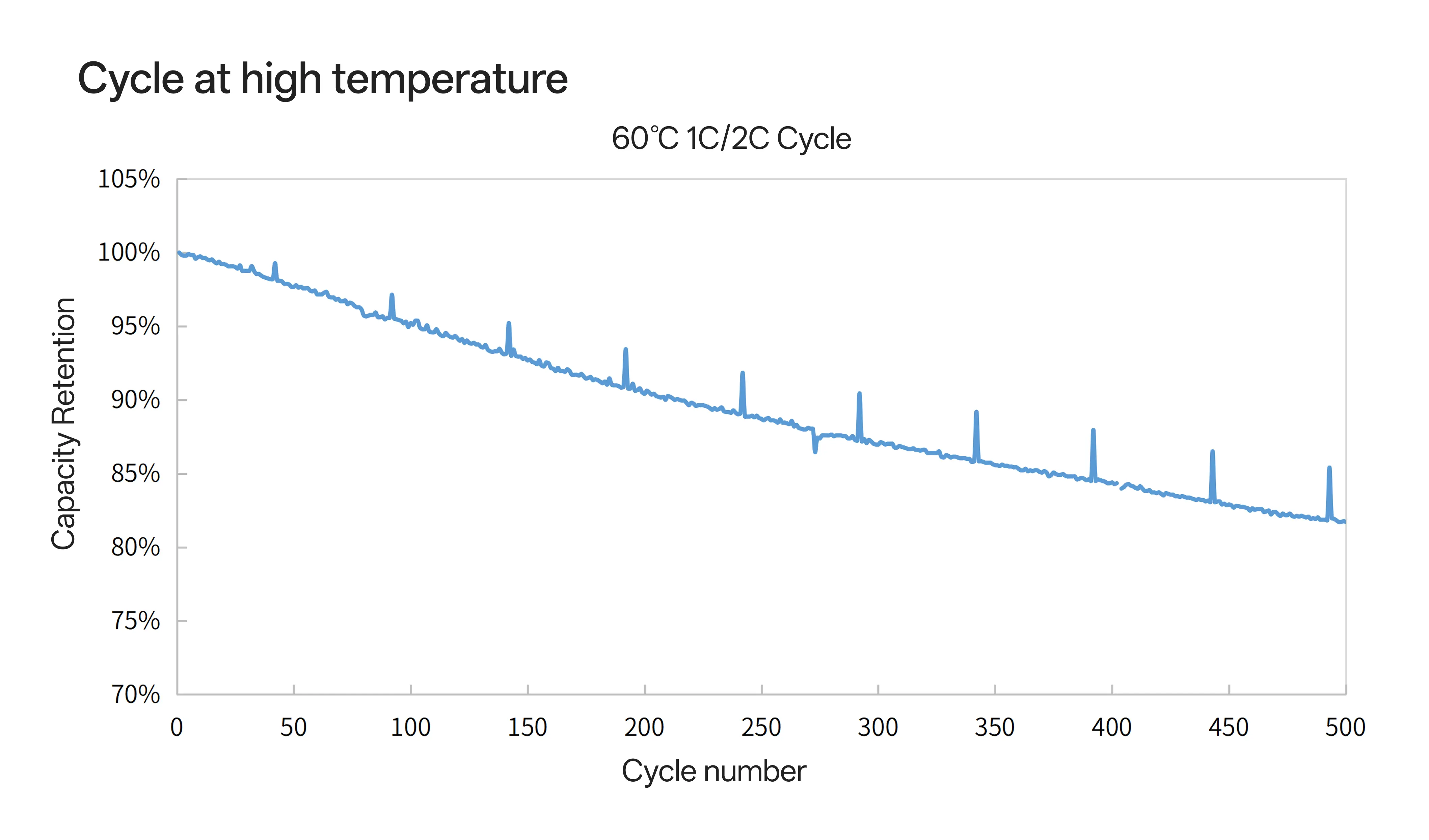

Long Endurance Life at High Temperature
Retain 75% capacity after 1C/2C 500cycles at 60℃.

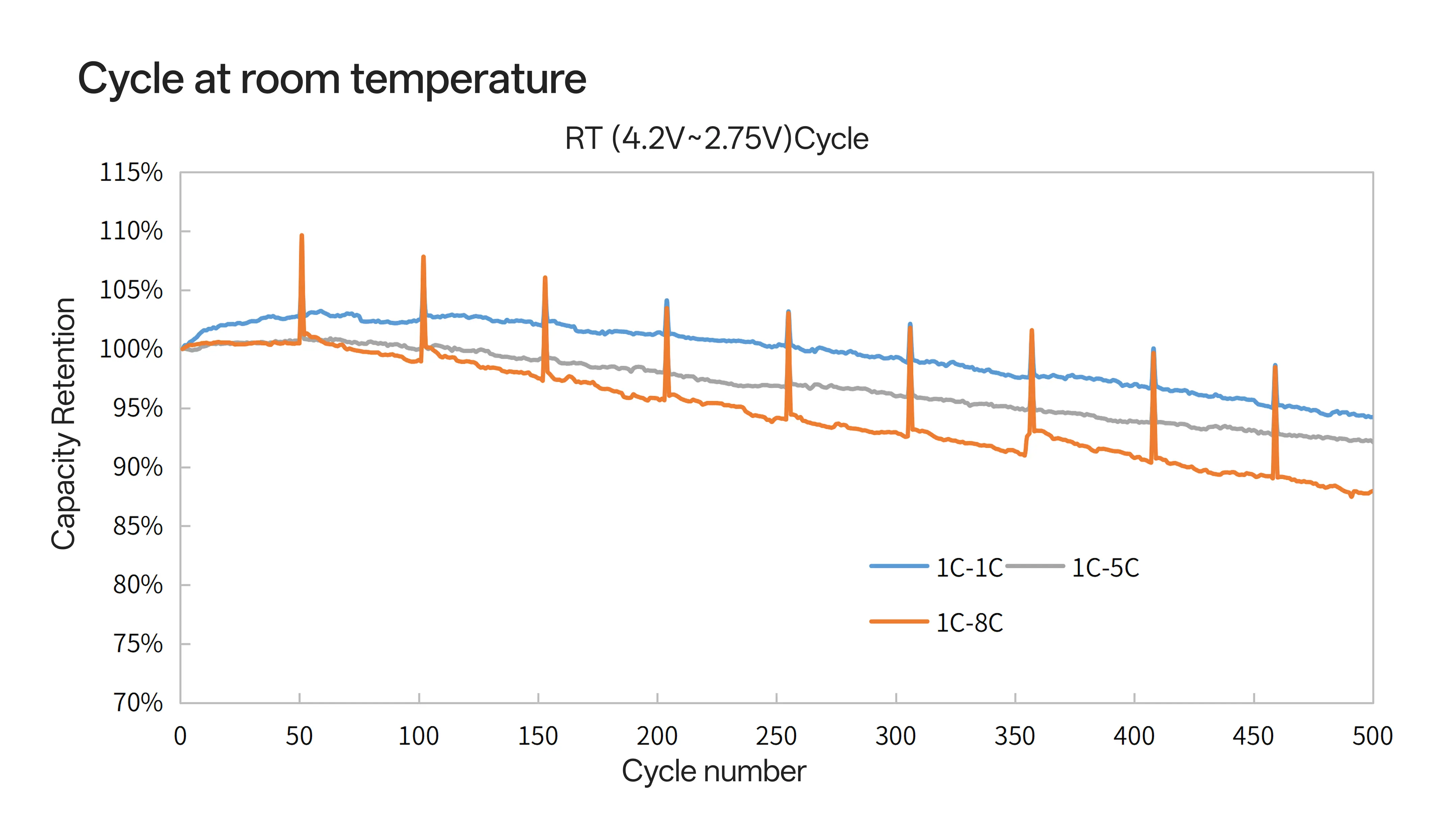

Extended Cycle Life
Retains over 90% capacity after 500 cycles, ensuring long-term reliability.

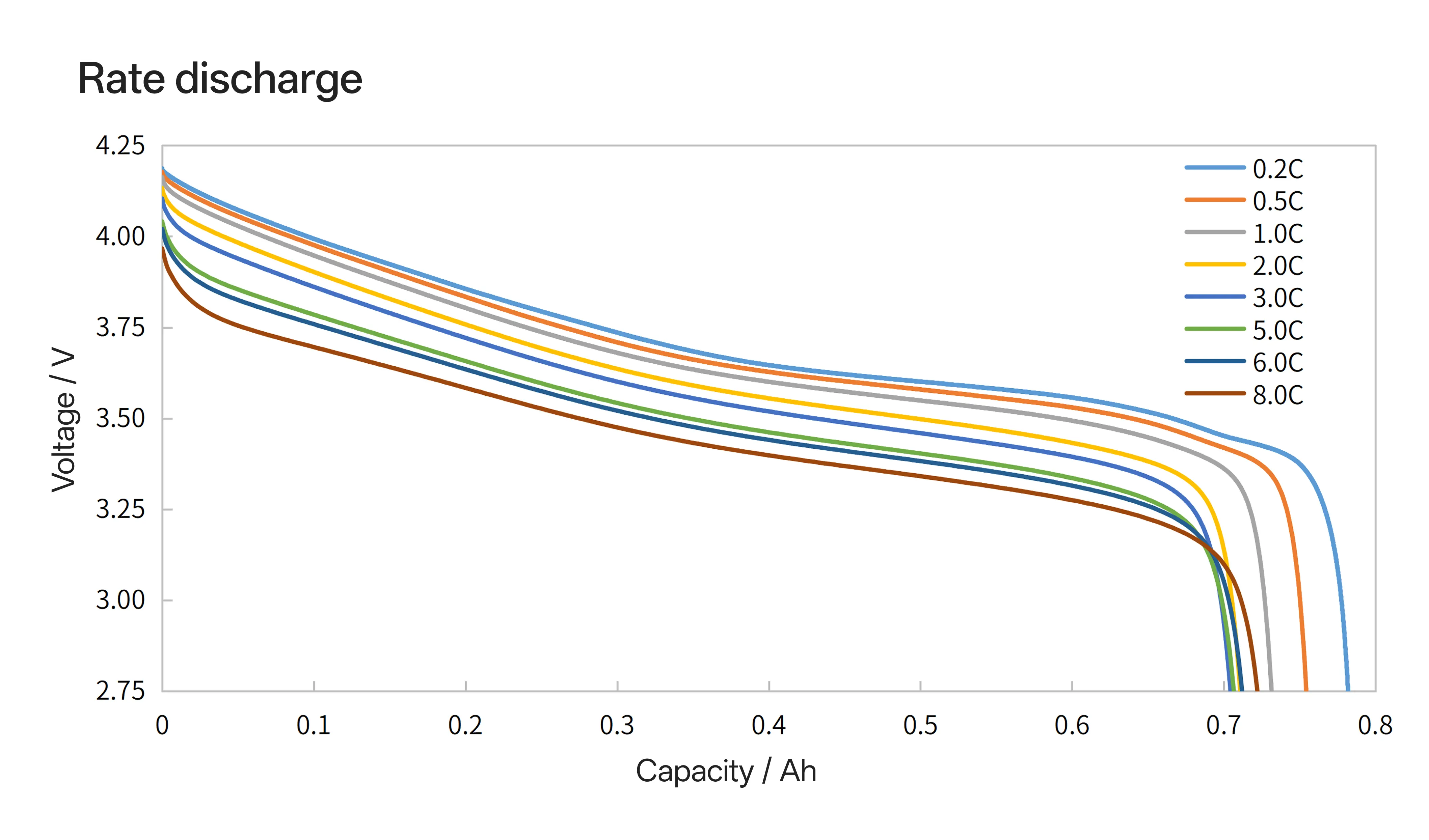

High Discharge Capability
Supports 5C continuous discharge, meeting high-power application needs.

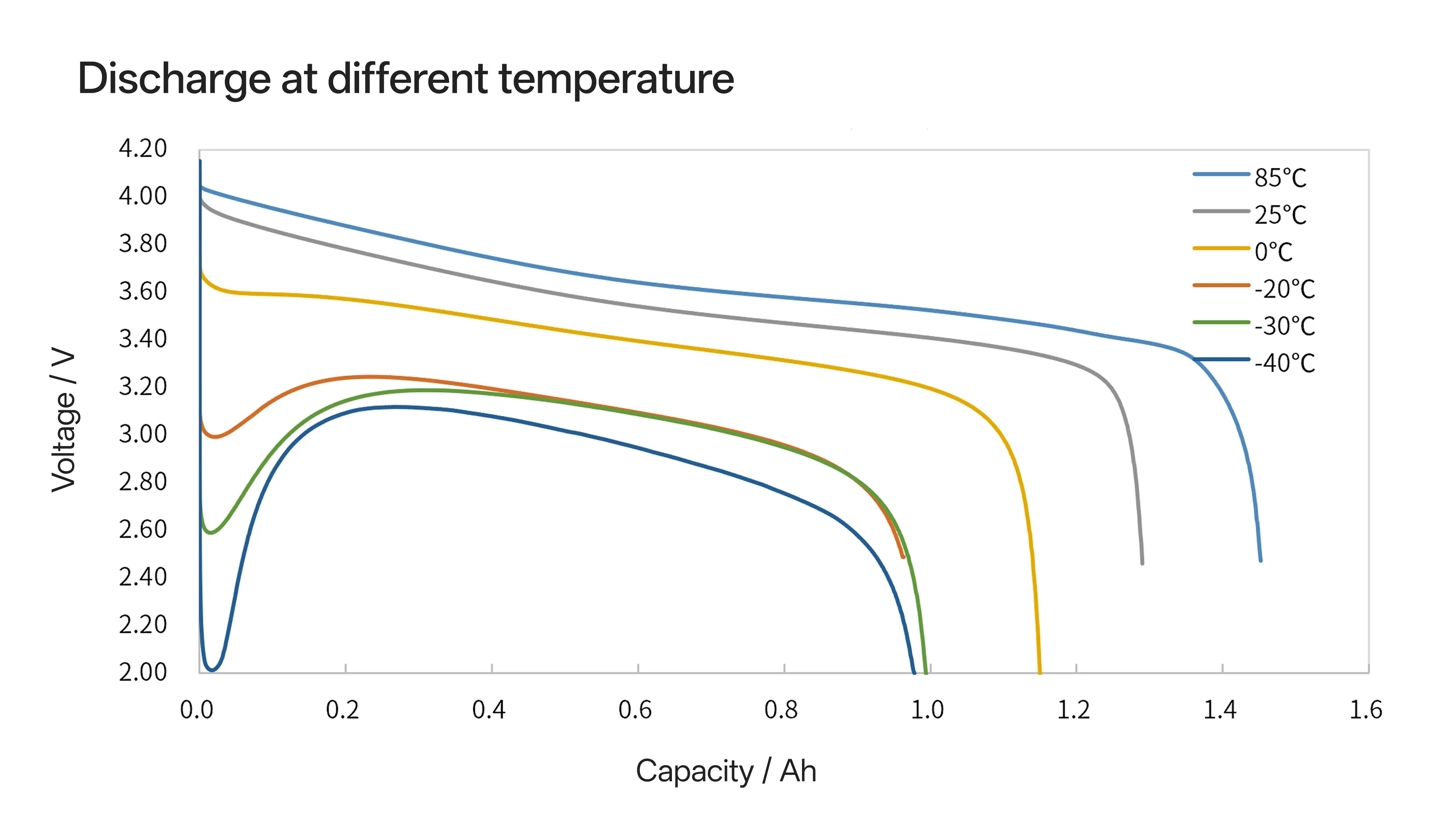

Explore HL14500R Performance Insights
Discover the unmatched capabilities of HL14500R through our comprehensive performance insights. Experience superior reliability, maximize productivity, and empower your applications with confidence.
Compact and Safe Smart Power, Built for Harsh Conditions
Specialized battery for in-vehicle T-Box
A high-temperature, vibration-resistant battery solution developed for powering automotive smart gateways, which breakthroughs the power supply stability issue under extreme conditions and ensures the reliable operation of core functions of the Internet of Vehicles.
GPS Tracking Device Dedicated Battery
The 14500R battery is an IoT high-performance battery designed for logistics trackers and GPS positioning terminals, ensuring accurate positioning of devices in extreme environments and improving fleet management and delivery efficiency.
Compact power solution for outdoor instruments
Compact, weather-resistant batteries designed specifically for outdoor measuring instruments and industrial testing equipment, with high temperature resistance and shockproof construction to ensure stable power supply in harsh environments such as extreme cold and heat.
Versatile Power for Critical Applications
The HL14500R battery ensures reliable power in extreme conditions, helping your products stand out and driving profitability through reduced risks and enhanced performance.
Automotive Electronics
Security & Monitoring
Medical Devices
Industrial Handhelds
Outdoor Instruments
Mineral Exploration Solutions
Military Gear
Smart Logistics Equipment
Product Specifications
Dimension
Diameter
14.2±0.2mm
Height
48.9 ± 0.3 mm
Capacity
Min capacity(0.2C)
700 mAh
Typical capacity(0.2C)
750 mAh
Voltage and current
Nominal voltage
3.60V
Working voltage
2.75V-4.20V
Max charge/discharge current
0.7A / 3.5A
Working temperature
Charge
-20~60℃
Discharge
-40~85℃
Other
Cycle life
> 500
-40℃ capacity (0.2C)
≈ 60%
Recovery capacity after 1000h 85°C aging
> 90%
